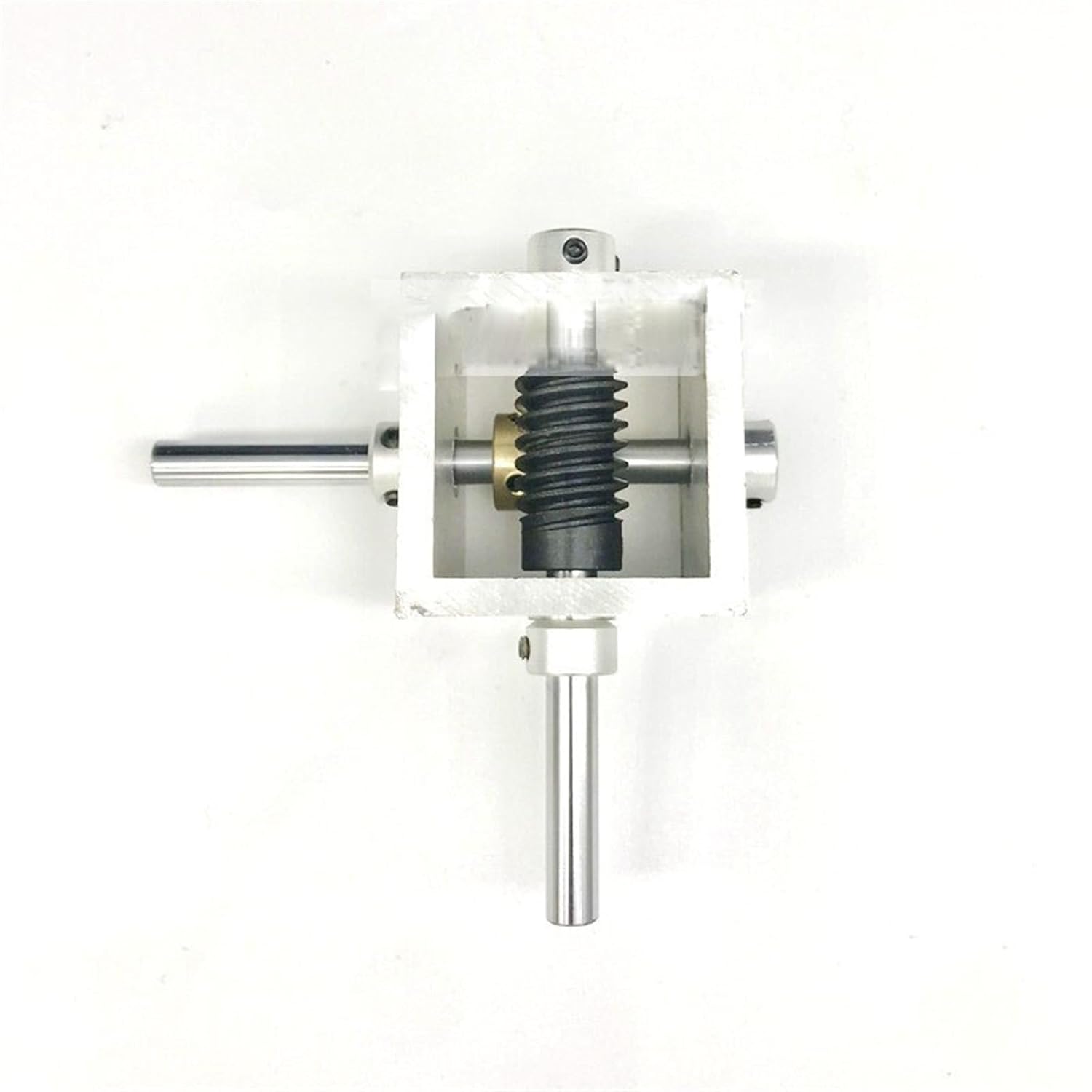

Miter Transmission 1pcs 90 Degree Worm Gear Reducer Gearbox 1:10 1:20 Corner Gear Steering Small Gear Box Right Angle Reversing Gearbox Pinion Mechanical (Color : Type 1 8mm Shaft)

Type 1 :1:10 in shaft 6mm out shaft 6mmtype 2 :1:10 in shaft 8mm out shaft 8mmtype 3 :1:20 in shaft 6mm out shaft 6mmtype 4 :1:20 in shaft 8mm out shaft 8mmWorm gear parametersWorm material: 45 Steel Blackening Worm gear material: copperNumber of worm heads: 1pc (speed ratio1:20) , 2pcs (speed ratio1:10)Worm outer diameter: 18mmWorm length: 32mmNumber of worm gear teeth: 20 toothOuter diameter of worm gear: 22mmTooth width: 10mmStep outer diameter: 17mmStep thickness: 8mmWorm gear bore: 6mm 8mmInstallation center distance: 18mmOverall weight of transmission: about 0.25kg Frame material:aluminium alloyAluminum alloy drilling and cutting process may produce scratches, which will not affect the useThe product has no fixed mounting hole The buyer needs to punch and fix it by himself There are no covers up and down.This product is simple It cannot be used for high-speed operation It is used where the accuracy is not high Reduction ratio 1than20 It means that if the worm input shaft rotates20circle Worm gear output rotation1circle (You can't use it in reverse)

• Worm material: 45 Steel Blackening, Worm gear material: copper, Number of worm heads: 1pc (speed ratio1:20) , 2pcs (speed ratio1:10)
• Number of worm gear teeth: 20 tooth, Outer diameter of worm gear: 22mm, Tooth width: 10mm
• Overall weight of transmission: about 0.25kg
• The bevel gear is cast with exquisite production technology, the size is precise, the gear teeth meshing is complete and tight, and the power transmission ratio is stable
• Widely used in conveying, agricultural equipment, textile machinery, printing machinery, CNC machines, 3D printers, models, robot DIY, automotive applications, etc.
