DIN Rail Mount Screw Terminal Block Breakout Module Board for ESP32-DevKitC
4.2 (93 items)
Limited Time SaleUS$18.60 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 221453246 | Release Date | 2026/05/03 | List Price | US$12.40 | Model Number | 221453246 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

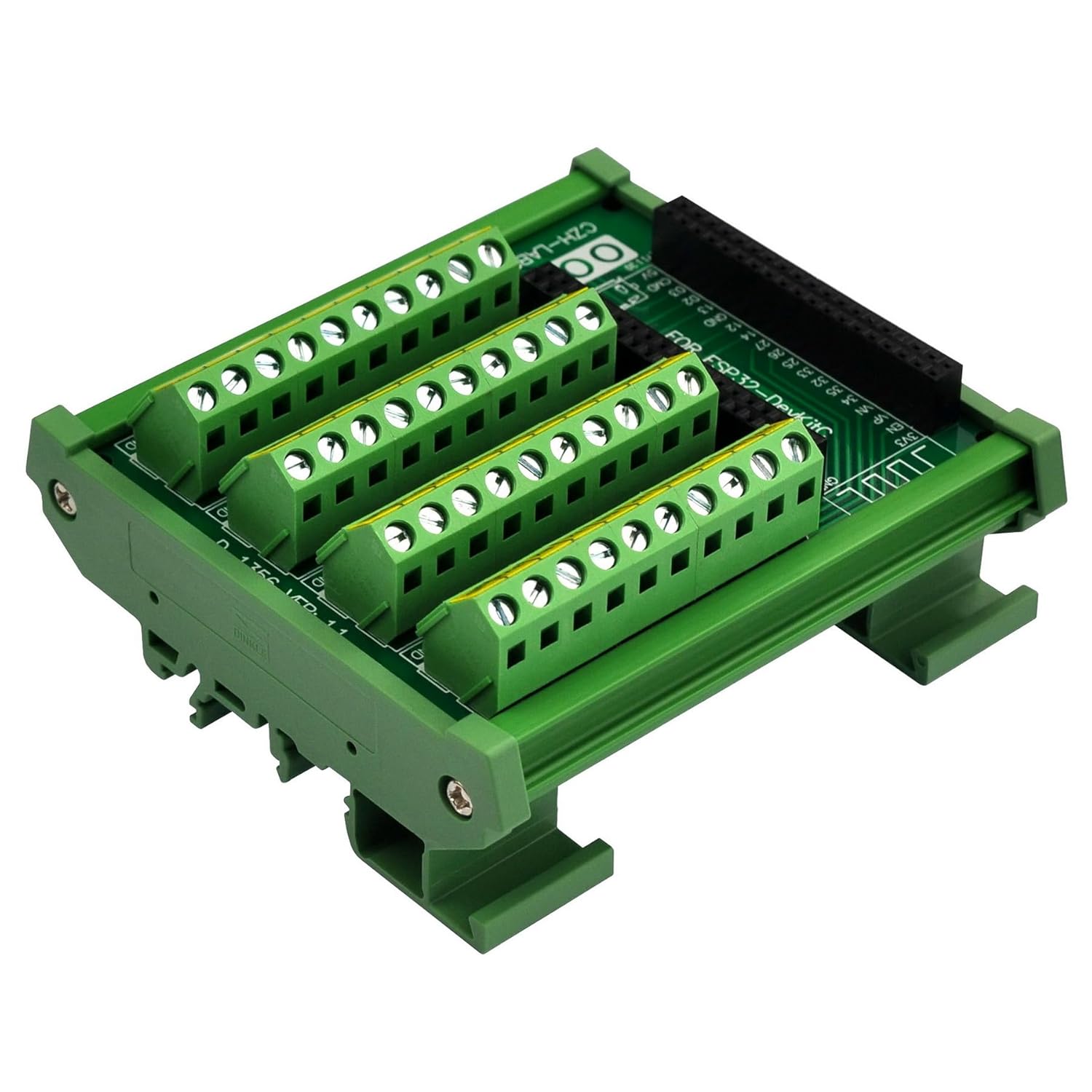

DIN Rail Mount Screw Terminal Block Breakout Board for ESP32-DevKitC. With the breakout board, you can easily extend ESP32-DevKitC projects to industrial control applications. PCB mount Terminal Block: pitch 5.0mm/0.197", strip length 7mm, screws - M2.5, steel, Cr3+ Zn plated. pin header and cage - brass. Wire range 28AWG ~ 12AWG / 2.5mm square. High quality Taiwan DINKLE Fireproof nylon material DIN rail mount carrier, can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use. FR-4 fiber glass PCB, dual copper layers. Note: the item not include ESP32-DevKitC board. The breakour board supports ESPRESSIF official ESP32-DevKitC, but we do not guarantee whether to support third-party modules, you can check the ESPRESSIF official website for more information before buying.
- DIN Rail Mount Screw Terminal Block Breakout Board for ESP32-DevKitC. With the breakout board, you can easily extend ESP32-DevKitC projects to industrial control applications.
- PCB mount Terminal Block: pitch 5.0mm/0.197", strip length 7mm, screws - M2.5, steel, Cr3+ Zn plated. pin header and cage - brass. Wire range 28AWG ~ 12AWG / 2.5mm square.
- High quality Taiwan DINKLE Fireproof nylon material DIN rail mount carrier, can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use. FR-4 fiber glass PCB, dual copper layers.
- Note: the item not include ESP32-DevKitC board. The breakour board supports ESPRESSIF official ESP32-DevKitC, but we do not guarantee whether to support third-party modules, you can check the ESPRESSIF official website for more information before buying.
| Color | Green |
|---|---|
| Gauge | 12.0 |
| Model | D-1356 DIN |
| Pitch | 5 Millimeters |
| Brand Name | OONO |
| Part Number | D-1356 DIN |
| Manufacturer | CZH-LABS |
| Material Type | Brass, Copper |
| Mounting Type | DIN Rail Mount, PCB Mount |
| Connector Type | Screw |
| Number Of Poles | 4 |
| Number Of Contacts | 4 |
| Number of Positions | 4 |
| Item Dimensions W x H | 0.59"W x 1.38"H |
