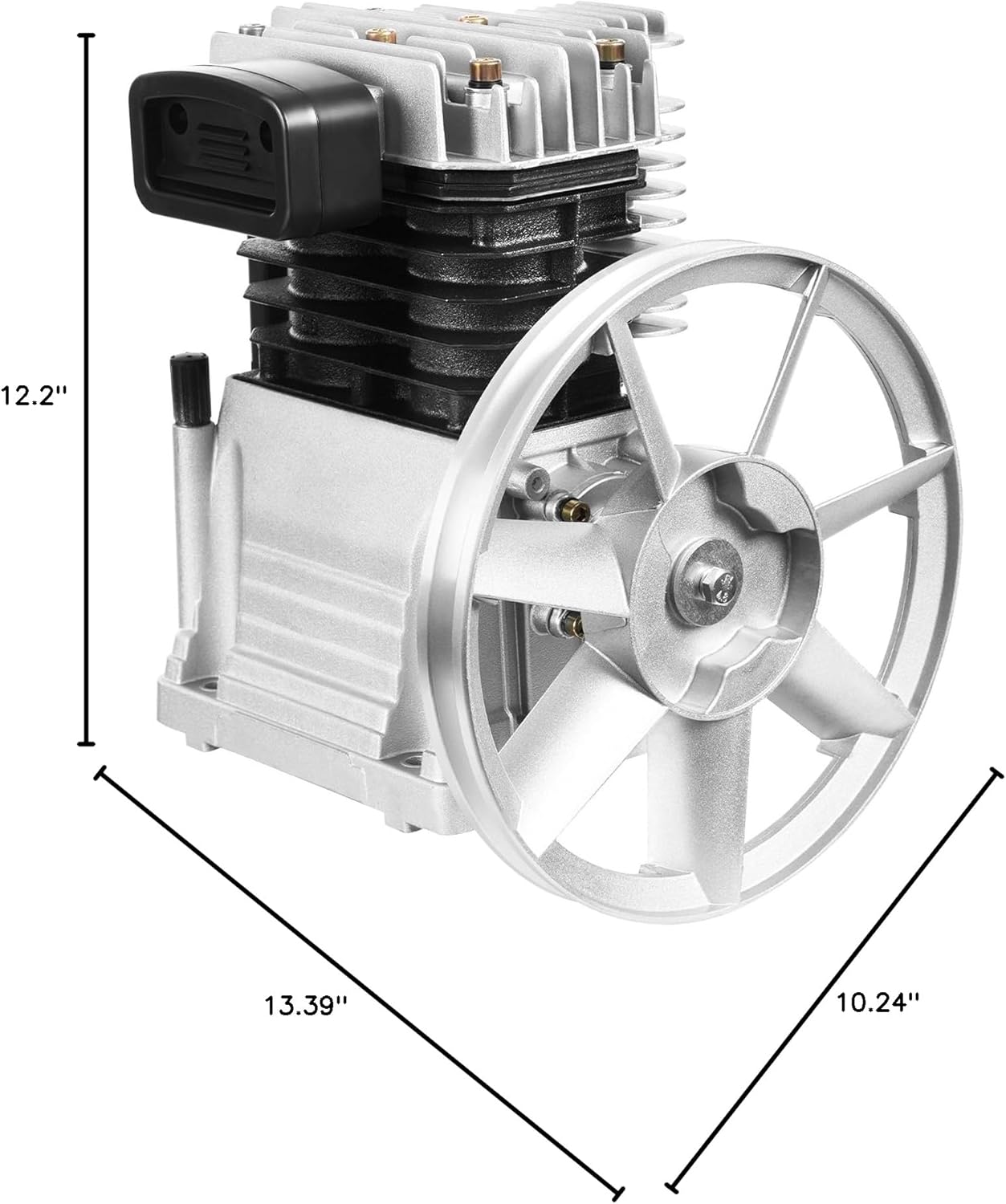

Air Compressor Pump,Heavy Duty Air Compressor Piston Head Twin Cylinder Air Compressor Pump Head Piston Style Lubrication Pump for Chemical, Light Industry, Textile Occasions

Details Round Edges: Smooth, burr-free edges are not only comfortable to touch but also enhance safety in use.Air Filter Muffler: It can deliver clean, contaminant-free air to the pump with low noise.ApplicationIt can be used in the automotive industry, pneumatic tools, decoration, chemical industry, light industry, textile, food, health, electronics, machinery, mining, construction, scientific research and other sectors that require high quality compressed air.SpecificationColor: Silver and BlackModel: 2065 Material: Aluminum and IronProcess: PaintingAssembly Required: YesMounting Type: Mounting on Air Compressor(Not Included)Matching Motor Power: 2.2KWDischarge Volume: 250L/66Gal/minRated Exhaust Pressure: 0.8mpaMaximum Pressure: 1.0mpaHorsepower: 3HPCylinder Diameter: 65mm/2.56inPulley Outer Diameter: 260mm/10.24inProduct Size: 31*26*34cm/12.2*10.24*13.39inPackage Size: 34*33.6*25.5cm/13.39*13.23*10.04 inNet Weight: 11kg/24.25 lbGross Weight: 12.32kg/27.16 lbPackage Included1* Air Compressor Pump HeadOther Accessories for UseNotes1.Before matching, you should pay attention to the air supply pressure, exhaust volume per minute, rated power, mounting aperture, header connecting pipe caliber, and the number of cylinders.2.Please note that the parts need to be cleaned and dried after assembly and please do not use too much force when disassembling and assembling parts.3.Please note that the machine is rated pressure and can not be adjusted upward.

• 【Outstanding Performance】The 3HP motor fits with ≥2.2kW strong power machine, which can generate a maximum speed of 850r/min. Its elongated cylinder can quickly inflate, meeting the dual needs of speed and efficiency.Stable Operation: The connecting rod has been precisely machined and the high-strength belt pulley strictly corrects its balance and support to ensure the balance of the engine during operation.
• 【Excellent Heat Dissipation】High-quality heat dissipation fins can ensure stable performance of the pump even after long-term operation, effectively reducing mechanical losses and failures caused by overheating.
• 【Twin-cylinder Design】Compared to single-cylinder compressors, the twin-cylinder one can provide greater compression capacity at the same volume, generating high airflow (7.5CFM), achieving up to 0.8 Bar pressure, and providing sufficient and stable air support.
• 【Low Noise】This pump has a noise level of only 55dB during operation, which is very suitable for places that require minimal interference during work.
• 【Cost Effective】Its piston ring adopts a dual scraper ring design, which consumes less engine oil and avoids frequent refueling, saving costs.The appearance is simple with smooth lines, full of modern and industrial style. Its classic silver and black combination not only meets your appearance needs, but also highlights your taste.
