4" 4 inch 720x720 300nit IPS MIPI LCD Round Touch Screen and Controller Board 31 pins

LCD Controller Board: Input Power Adapter: USB 5V More than 1A.Come In Standby Model When Not Input SignalVideo Input: Micro H/D Board Size: 50mm x 35mm x 5mm4" VS40016C31 720X720 Capacitive Touch LCD Screen:Display Mode IPS, Normally White, TransmissiveResolution 720(RGB)x720Outline Size 132.6x132.6x4(W×H×D)mmDisplay Area 101.52x 101.52(W×H)mmBrightness 300 cd/m² (Typ.)Contrast Ratio 300:1 (Typ.) (TM) Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]Interface Mipi (1ch, 8-bit) , 31 pinsBacklight WLEDInput Voltage 2.8V (Typ.)Packing list:1× LCD Board1×4inch VS40016C31 720x720 Capacitive Touch LCD Screen

• 【Round MIPI screen】4" IPS full viewing angle,Great resolution 720x720,outline size:105.6x109.87x2.13(W×H×D)mm,display area:101.52x 101.52(W×H)mm,300nit high brightness ,WLED backlight ,input voltage: 2.8V .

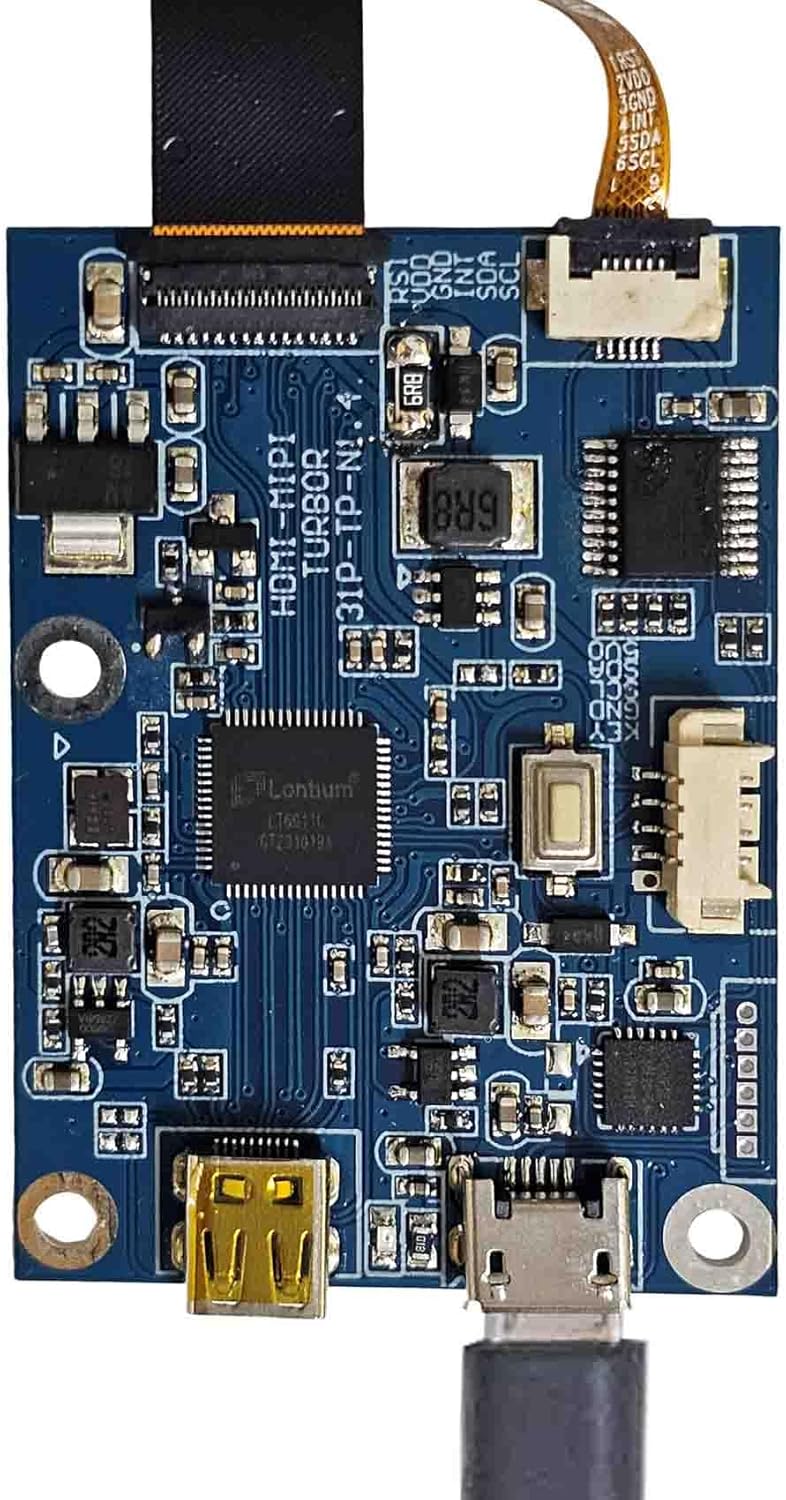

• 【Controller board】Video input :port ,board size: 50mm x 35mm x 5mm,pls use it in insulated environment.
• 【Capacitive Touch sensor panel】The design of touch panel makes the operation more convenient, No button damage issue for after long time use.
• 【Input Power】5Vdc More than 1A,Pls prepare it seperately .
• 【Plug and play】Connecting cables and ports according to link picture details ,Power on and enter signal cable ,the touch screen can work well after powering.
