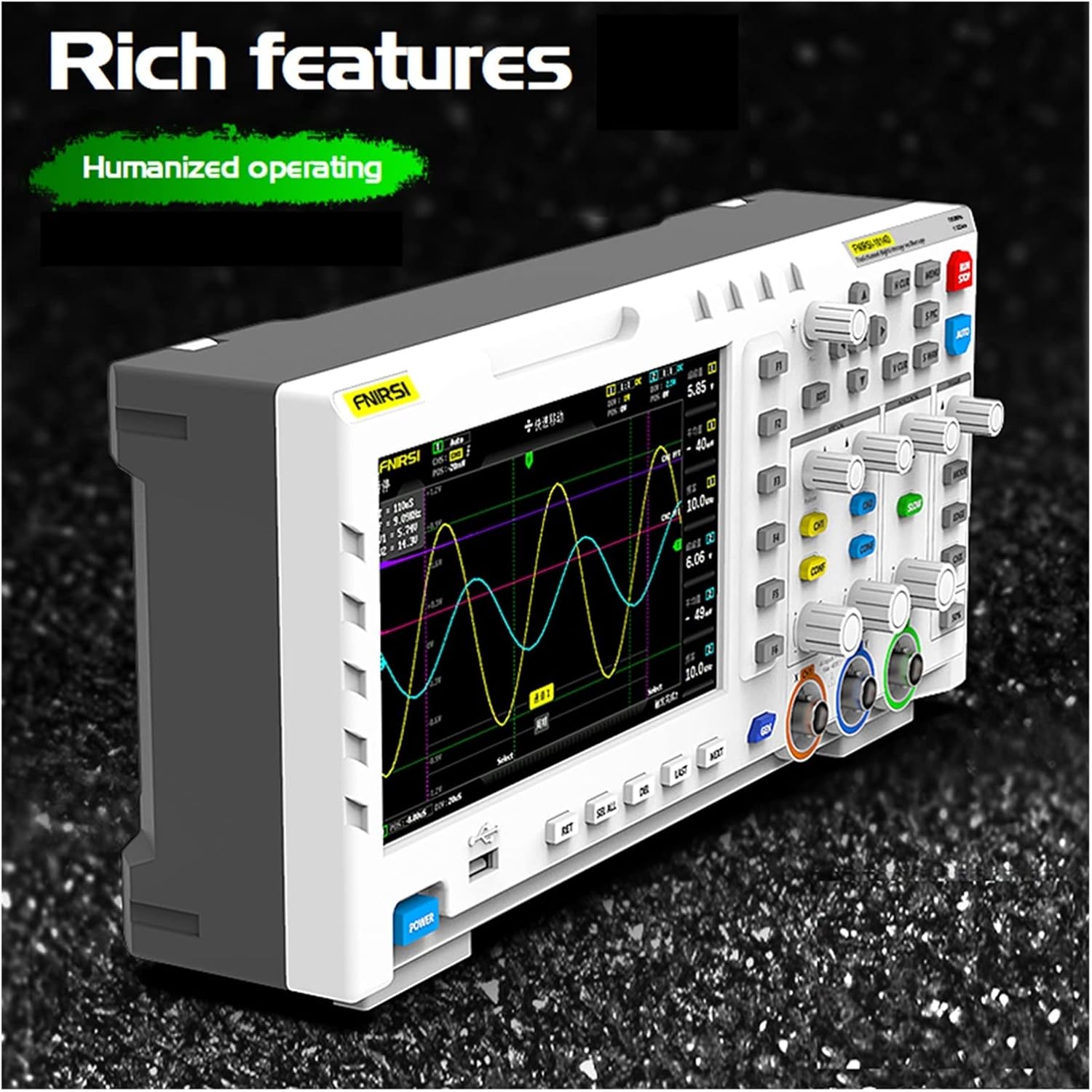

1014D Portable Digital Oscilloscope 2 In 1 Dual Channel Input Signal Generator 1GSa/s Sampling Rate Desktop with High Efficiency

Digital Oscilloscope, Oscilloscopes, Electronic Measuring Instruments, Measurement & Analysis InstrumentsFeatures:- High measurement voltage range: 1X can measure 0~40 V, 10X can measure 0~400V.- Up to 12 parameters measurement:VPP,VP,Vmax,Vmin,Vavg,Vrms,Frequent,Duty+,Duty-,Time+,Time-,Period.- Cursor measurement function: it is convenient to manually measure the period and frequency and voltage.- Complete triggering function (single, normal, automatic), and at any time, the waveform display (pause function) is fro-zen.- Equipped with high efficiency One-button AUTO, and one-button waveform storage and screenshot function.- Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data.- Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc.- Equipped with a USB interface, which can be connected to a com-puter to share its screenshots with the com-puter, which is convenient for secondary analysis.- Lissajous figures graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals.- FFT display function, can analyze the spectral characteristics of the signal, memory technology, waveform refresh screen does not flicker.- With the screen brightness adjustment function and background gr-id brightness adjustment function, also easy to carry.Specifications:Material: ABSAna-log band width: 100MHz * 2Number of channels: 2 channelsMaximum real time sampling rate: 1GSa/sVertical sensitivity: 50 mV/div ~ 500 V/divHorizontal time base range: 50S/div ~ 10nS/divMaximum test voltage: 40 V (1X probe), 400 V (10X probe)Storage depth: 240KbitInput resistance: 1MADC precision: 8bitsCoupling mode: AC/Direct CurrentTrigger mode: Single, Normal, AutoTrigger edge: Rising edge/Falling edgeExternal trigger voltage 0~40 VExtension ports: USB picture exportPackage size: 340 * 140 * 70mm / 13.4 * 5.5 * 2.8inPackage weight: 1949g / 4.3lbPacking list:1 * 1014D Oscilloscope Host2 * Matching 100MHz Probe (1X and 10X)1 *Clip1 * USB Data Line1 * English User Manual

• Built in DDS signal generator, support 12 kinds of function signal.
• Capture output signal function, which can store up to 1000 capture signals.
• Targeted high intelligent decoding algorithm, the encoderlife is infinite, and intelligent anti-burn function, 1X Can withstand up to 400V withstand voltage.
• With 100MHz * 2 ana-log bandwidth and @ 1GSa/s sampling rate(1X = 5MHz, 10X = 100MHz).
• Fully fit 7 inch 800 * 480 resolution color TFT LCD display with bright colors and high contrast.
